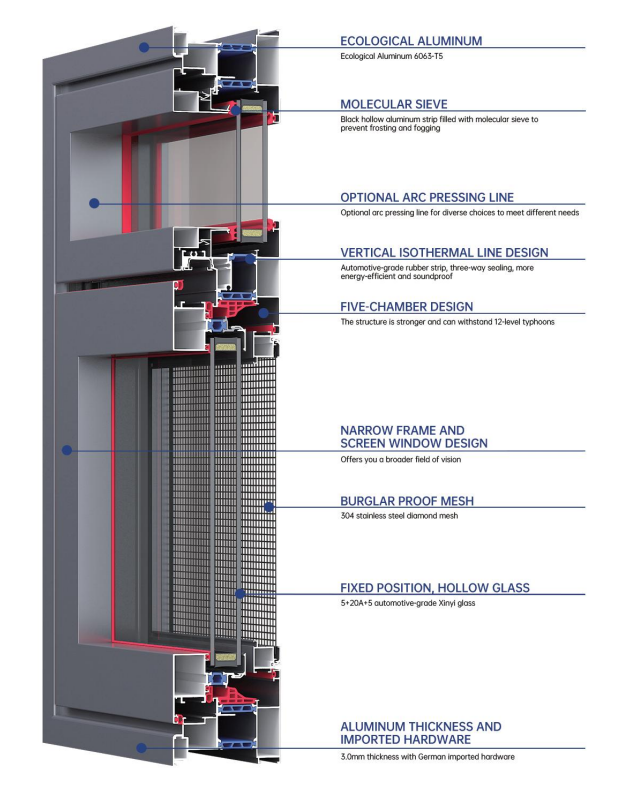

PRODUCT CONFIGURATION
| ALUMINUMMATERIAL | National standard 6063T5 primary aluminum alloy |
| SURFACE | Metal powder fluorocarbon process, antioxidant, anticorrosive, and hightemperature resistant |
| WALLTHICKNESS | Wall thickness of 2.0mm |
| HARDWARE | OPK brand accessories |
| GLASS | 5+20A+5 (Xinyi original sheet) |
| STEEL MESH | 0.4mm,0.8mm high-definition mesh |
| THERMALINSULATION STRIP | PA66 nylon thermal insulation strip |
| ADHESIVE STRIP | Automotive-grade EPDM composite adhesive strip, high temperature resistant.anti-aging,and softer |
| PROCESS | Corner code glue injection process, whole frame crimping |
CUSTOMIZATION NOTES
1.The minimum width of the opening sash is 550mm, and thetotal width of the entire window is 1100mm.
2.The standard accessories can support a weight of 60kg,allowing the maximum size of the opening sash to be 2.2square meters. The upgraded accessories can support a weightof 90kg, allowing the maximum size of the opening sash to beapproximately 3 square meters.
3.The minimum area for a sliding window starts from 2 squaremeters.
GOOD QUALITY
QUALITY INSPECTION PROCESS
Our products have undergone strict quality
inspections, which meetthe high quality require-
ments of our factory and also meet the needs of
customers.Welcome customers or professional
certification bodies to test our products,
Keywords: YiLuofa
